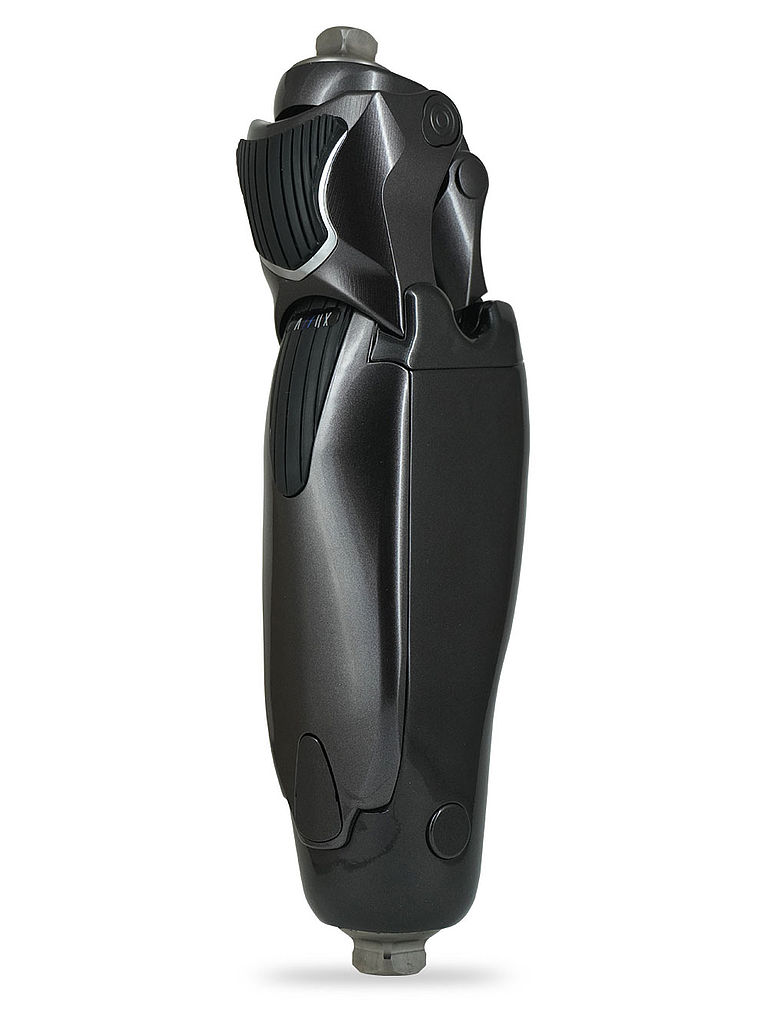

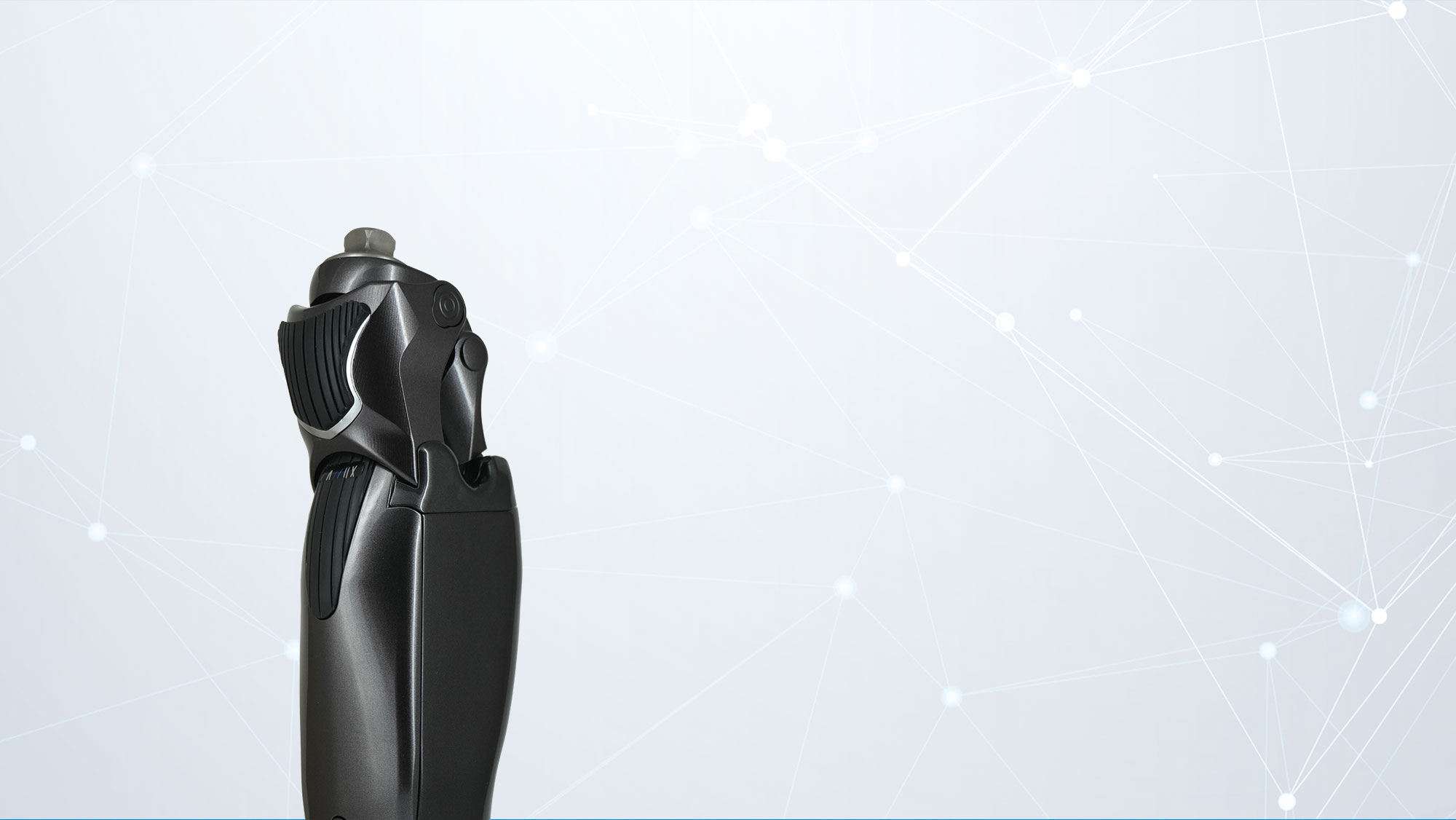

ALLUXTM 2: Smart Prosthetic Knee Joint
The ALLUXTM 2 is a smart, microprocessor-controlled prosthetic knee joint (MPK) for people with a above-knee amputation, knee disarticulation, or hip disarticulation. As an artificial knee joint, it is classified as a “Smart Knee” and combines a 4-axis, polycentric mechanism with microprocessor-controlled hydraulics. This enables a natural gait while ensuring a high level of safety in everyday life.
Discover our Smart Knee Joint
Would you like to know if the ALLUX™ 2 knee joint is right for you? Contact us or our distributor in your country, or reach out to your orthopaedic center, your Prosthetists or a rehabilitation center.
Get in touch
What Advantages does ALLUXTM 2 Offer for Modern Knee Replacements?

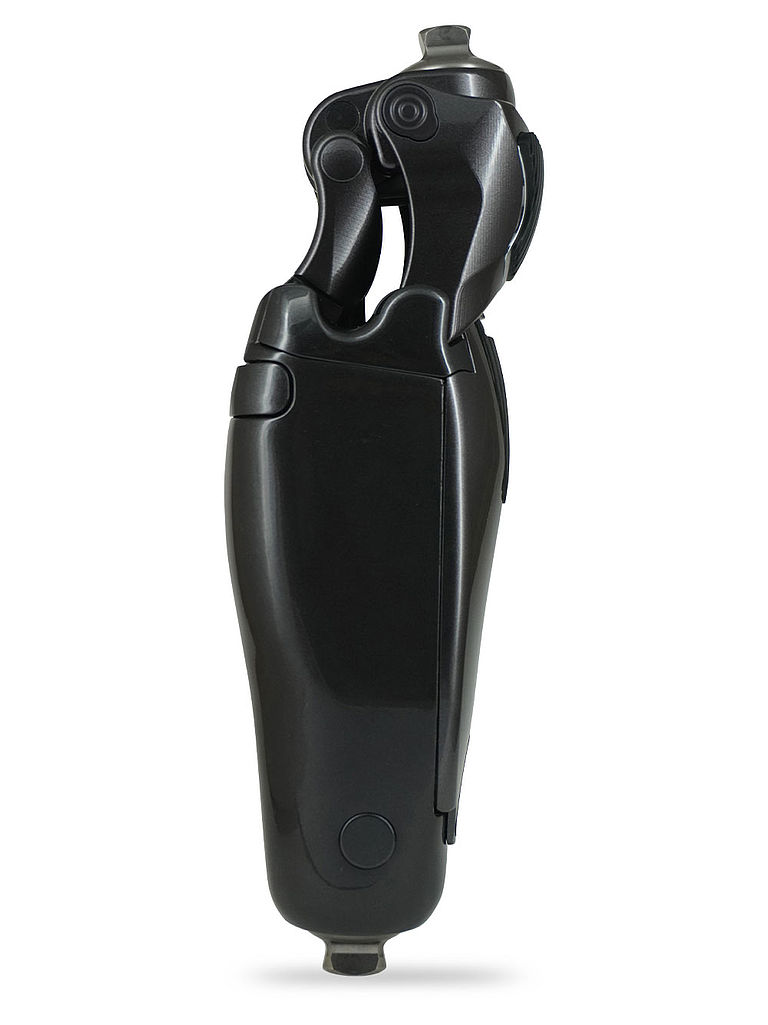

The ALLUXTM 2 is designed after the natural knee joint and combines a 4-axis, polycentric mechanism with a microprocessor-controlled hydraulic system. This system regulates the stance and swing phases, thereby supporting a safe, dynamic gait pattern during various everyday activities.
Benefits in everyday life:
- Walking, standing, and sitting more safely
- Reduced risk of tripping
- More controlled navigation of stairs and slopes
- Greater freedom of movement when cycling, kneeling, and sitting
- Adjust settings via a smartphone app
- Long battery life and backup battery
Overview of Features and Benefits
| Function | Everyday Benefits |
|---|---|
| Microprocessor-controlled hydraulics | Automatically adjusts resistance to movement and walking speed |
| 4-axis, polycentric mechanism | Provides greater ground clearance during the swing phase and can reduce the risk of tripping |
| Tripping protection | Increases resistance to bending when there is a risk of tripping, contributing to greater safety |
| Controlled flexion under load | Enables a smooth descent of stairs and slopes using an alternating step pattern |
| Flexion angle up to 180° | Helpful in everyday situations such as cycling, kneeling, or sitting |
| Smartphone app | Allows you to select different modes for specific activities |
| IP44 protection rating | Splash-proof and therefore usable even in the rain |
Walking, Standing, and Sitting Safely
The ALLUXTM 2 knee joint is designed for stability in many everyday situations and helps reduce the risk of uncontrolled buckling. During the swing phase, the 4-axis design provides ample ground clearance. This makes it easier to walk on uneven surfaces and can reduce the risk of tripping. When walking down stairs or slopes, the prosthetic knee joint can bend in a controlled manner under load. This allows for a smooth descent using an alternating step.

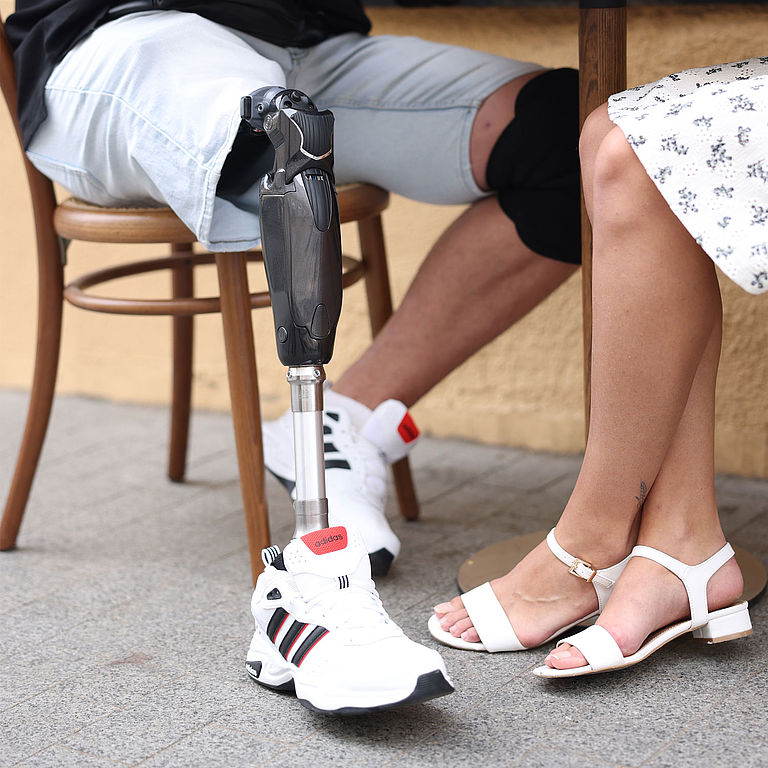

Thanks to its large flexion angle of up to 180°, the microprocessor knee joint is suitable for many everyday situations, such as cycling or kneeling. When sitting, the 4-axis system folds in on itself, thereby enabling a more natural and comfortable sitting position.
How does the ALLUXTM 2 Adapt to Different Walking Speeds?
The ALLUXTM 2 knee joint continuously monitors knee position and movement. It automatically adapts to different walking speeds and detects unusual movement patterns. If there is a risk of tripping, the hydraulic system increases flexion resistance, thereby contributing to greater safety.
Various modes can be selected via the smartphone app. This allows the artificial knee joint to be adapted to specific everyday situations and activities, such as cycling, normal walking, complete locking, or a specific limitation of the flexion angle.
For added safety, the flexion angle can be limited by the user or the orthopedic technician. If the knee is continuously flexed under load for a few seconds, the system locks the flexion resistance at a predetermined angle. This function can be deactivated or adjusted with faster or slower response time for sensitivity.
Battery Life, Weight, and Weather Resistance in Everyday Use
The battery in the ALLUXTM 2 knee joint typically lasts about 4 days at a rate of approximately 5,000 steps per day and fully recharges in about 3 hours. A backup battery is included in the package and provides added peace of mind. Weighing about 1.5 kg, the electronic knee joint is pleasantly lightweight. Thanks to its IP44 protection rating, it is splash-proof and can be used even in the rain.
The ALLUXTM 2 knee joint is suitable for people with transfemoral amputation as well as knee or hip disarticulation who require a high level of stability in daily life while wanting to remain active.
It is designed for users with moderate to high mobility, typically mobility levels K2 to K4. Due to the optimized, low build height of the joint, it can also be a suitable solution for long transfemoral residual limbs and following knee disarticulation.
With an appropriate medical indication, the ALLUXTM 2 knee prosthesis is covered by health insurance depending on the healthcare system in the patient’s country of residence. Please check with your Prosthetist or orthopaedic center who are the only ones qualified and licensed to fit this knee.

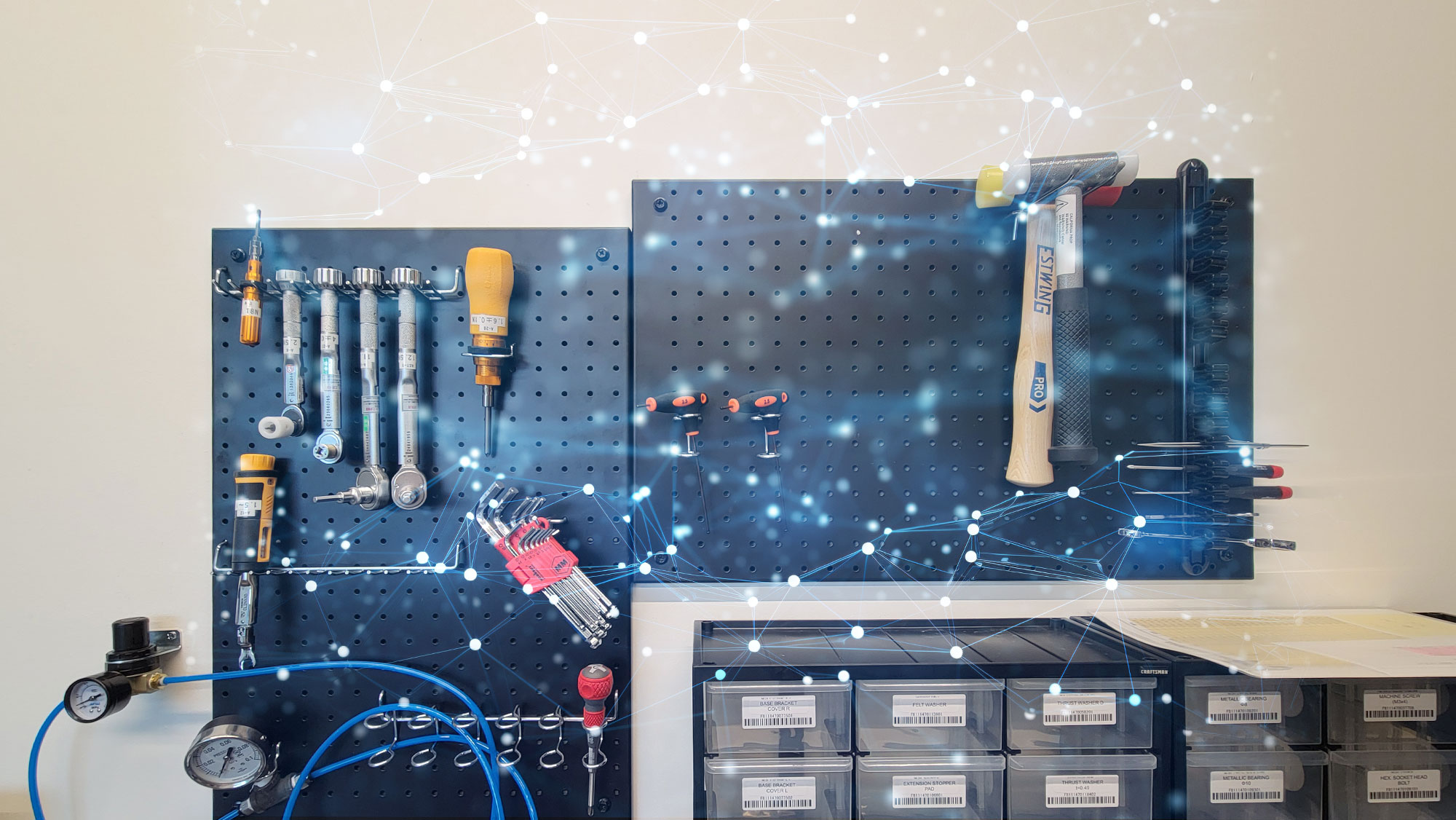

ALLUXTM 2 Knee Joint: Maintenance, and Service in Europe
We offer professional repair and maintenance services for the ALLUX™ 2 knee joint in Europe. Through our central service center in Düsseldorf, inquiries are coordinated in close collaboration with our partners in each contry. Our goal is to ensure reliable service, minimal downtime, and the long-term, safe use of the artificial knee joint.
Your benefits:
- Centralized service coordination in Europe
- Professional maintenance and repair
- Short turnaround times
- Loaner joint during maintenance, if available
- Technical support for service-related questions
- Long-term safety and functionality of the artificial knee joint
Our Services
- Regular maintenance under warranty
- Repairs for technical or mechanical issues
- Technical functional tests
- Support for service and maintenance questions
- Provision of a loaner joint during maintenance, if available
Maintenance work in Düsseldorf typically takes about two weeks. For more extensive service cases involving international coordination, the process—including transportation—may take about one month.
Do you have questions about maintenance or repairs for the ALLUX™ 2 knee joint? Contact our service team for next steps.
Technical Specifications at a Glance
The technical specifications summarize the most important details regarding the design, controls, battery, weight, protection rating, and app connectivity.
| Feature | ALLUXTM 2 Knee Joint |
|---|---|
| Joint Type | Microprocessor-controlled prosthetic knee joint |
| Mechanics | 4-axis, polycentric |
| Hydraulics | Microprocessor-controlled |
| Degree of mobility | K2, K3, K4 |
| Knee flexion angle | Up to 180° |
| Weight | Approx. 1.5 kg |
| Battery | Lithium-ion battery |
| Battery life | Approx. 4 days at about 5,000 steps per day |
| Charging time | Approx. 3 hours |
| Protection class | IP44, splash-proof |
| Suitable for | Above-knee amputation, knee disarticulation, hip disarticulation |
| App | Remote control app for users (iOS/Android) Setup app for orthotists (iOS/Android) |
| Communication | Bluetooth |
ALLUXTM 2 Compared to Other Micro Processor Knee Joints
The comparison highlights key features that may be relevant when selecting a MPK (Micro Processor Knee). Among other things, the joint mechanism, safety design, range of motion, battery performance, and overall height are crucial factors.
| Feature | Other MPK, depending on the model | ALLUXTM 2 |
|---|---|---|
| Joint mechanism | Often single-axis | 4-axis, polycentric |
| Safety concept | Electronically controlled stability, depending on the specific model | Combination of mechanical stability and microprocessor control |
| Bending angle | Depends on the model; often with a lower maximum bending angle | Up to 180° |
| App features | Not available on every system | 5 modes via smartphone app |
| Battery | Depending on the model, ranges from daily charging to several days of use; spare battery not always included | Approx. 4 days of runtime, approx. 3 hours of charging time, backup battery included |
| Mounting height | Depends on the model; not always designed for long stumps | Low-profile design, approx. 287 to 295 mm |
Other Knee Prostheses from Nabtesco

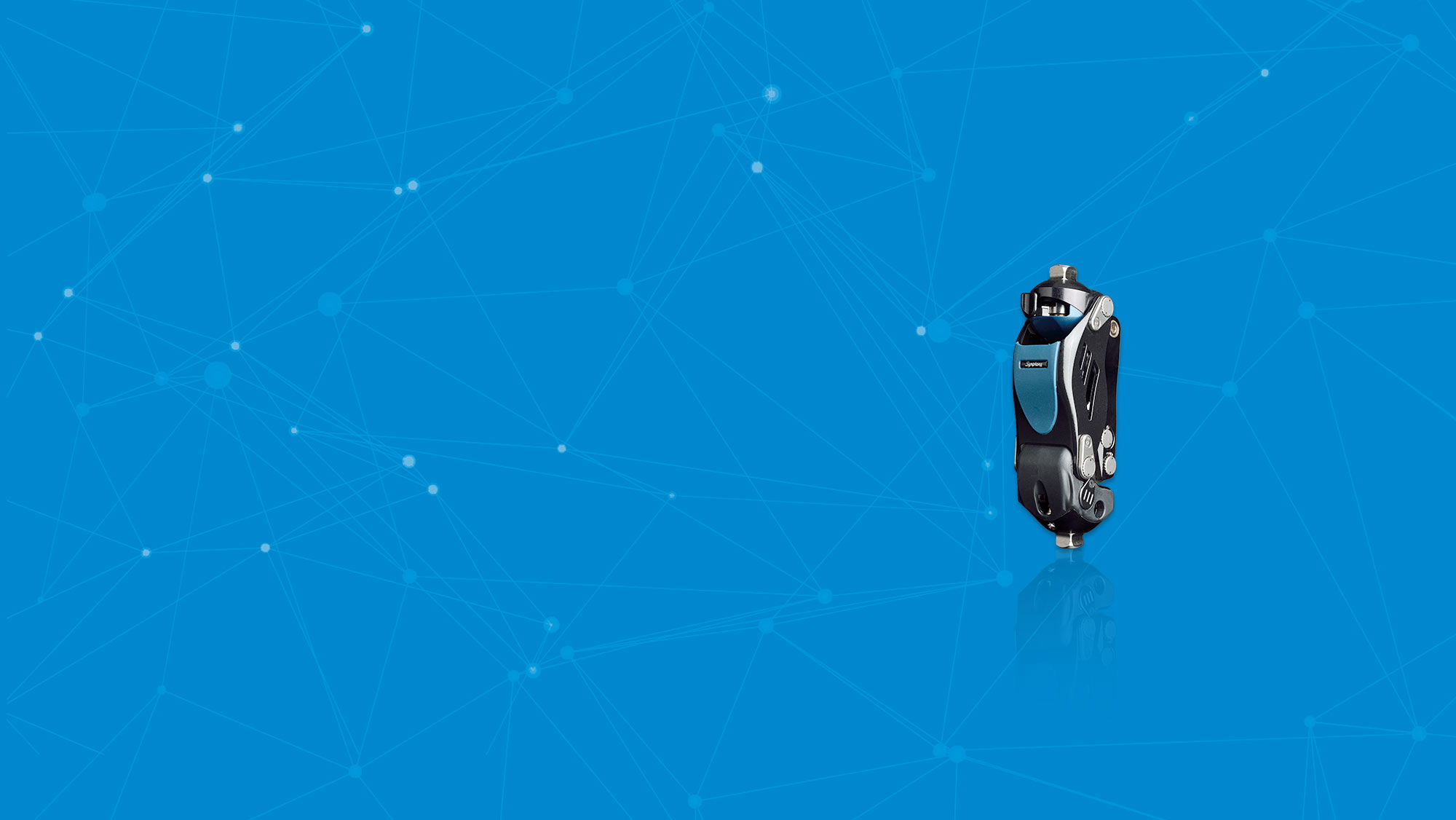

In addition to the ALLUX™ 2, Nabtesco offers other knee prostheses designed to meet a variety of clinical needs. These include, among others, SYMPHONY, a hydraulic 6-Bar knee with Pre flexion and optional lock, and the soon to be released HYBRID Knee R, which combines hydraulic and pneumatic systems.
To the Nabtesco Mobility Assist websiteFrequently Asked Questions About Microprocessor-Controlled Prosthetic Knees
An microprocessor knee is an intelligent prosthetic solution with an electronically controlled knee joint. Sensors detect movements and positions, a microprocessor processes this data, and it automatically adjusts the resistance of the artificial knee joint to the specific situation.
An intelligent knee prosthesis offers increased safety, stability and freedom of movement in everyday life. The electronically controlled knee joint adapts to different walking speeds, can reduce the risk of tripping, and supports controlled movements when walking, standing and sitting.
An intelligent knee prosthesis is usually selected, fitted and requested through a medical supply store (orthopedic supplier) or an orthopedic-technical specialist called CPO (Certified Prosthetist and Orthotist). There, professionals will assess which prosthetic solution is medically and technically appropriate.
With an appropriate medical indication, the ALLUX™ 2 knee prosthesis is covered by health insurance depending on the healthcare system in the patient's country of residence. Please check with your Prosthetist or orthopaedic center who are the only ones qualified and licensed to fit this knee.
The maintenance intervals depend on the particular knee joint used, the level of use, and the manufacturer's specifications. Regular maintenance is important to preserve the function, safety and service life of the knee prosthesis in the long term.
If there is a problem, you should contact your Orthopaedic center or your prosthetist who fitted your prosthesis. They will assess the service case and coordinate any necessary repair or maintenance with us, the manufacturer.
The duration depends on the scope of the maintenance, the specific electronic knee joint used, and the nature of the service case. For scheduled maintenance, processing can often be completed more quickly than for extensive repairs or cases that require international coordination.
A mechanical knee prosthesis operates without electronic control. A microprocessor-controlled knee uses sensors, a microprocessor, and hydraulic or other regulated systems to automatically adapt the artificial knee joint to movements, walking speed, and everyday situations.
A MPK is particularly suitable for people with moderate to high mobility who need more stability, safety and adaptability in everyday life. Whether it is appropriate in an individual case should be evaluated by an orthopaedic center, a Rehabilitaion center or a Prosthetist.
Sensors continuously detect knee position, movement and load. The microprocessor evaluates this information and controls the resistance of the artificial knee joint—for example during the stance and swing phases of gait or when there is a risk of tripping.
